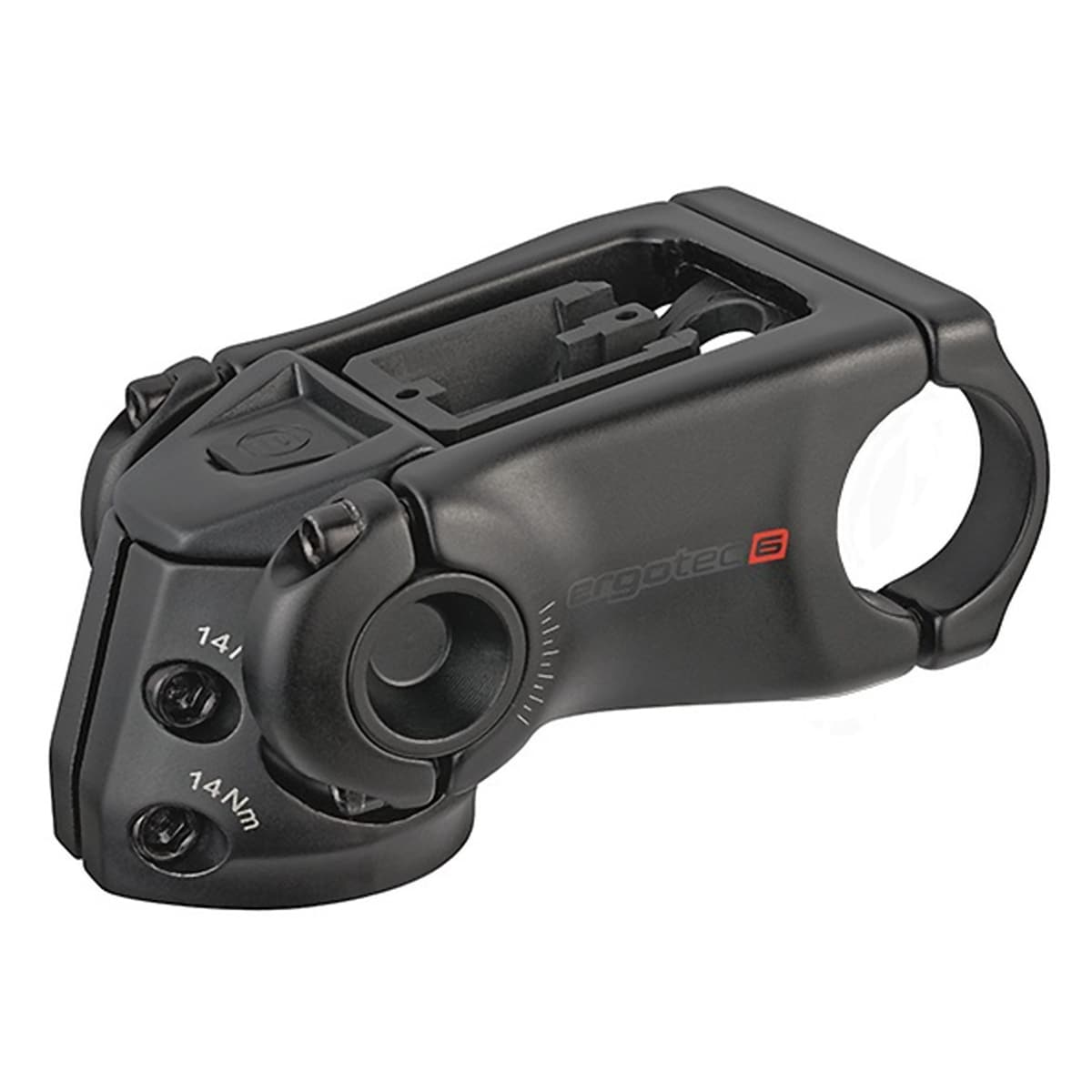

ergotec Integra Performance Vario Stem

The ergotec Integra Performance Vario is an Ahead stem that ensures a tidy cockpit with thanks to display integration. This Vario version can be used on many hybrid, city and e-bikes thanks to the 31.8 mm handlebar clamp and 28.6 mm (1 1/8") steerer clamp.

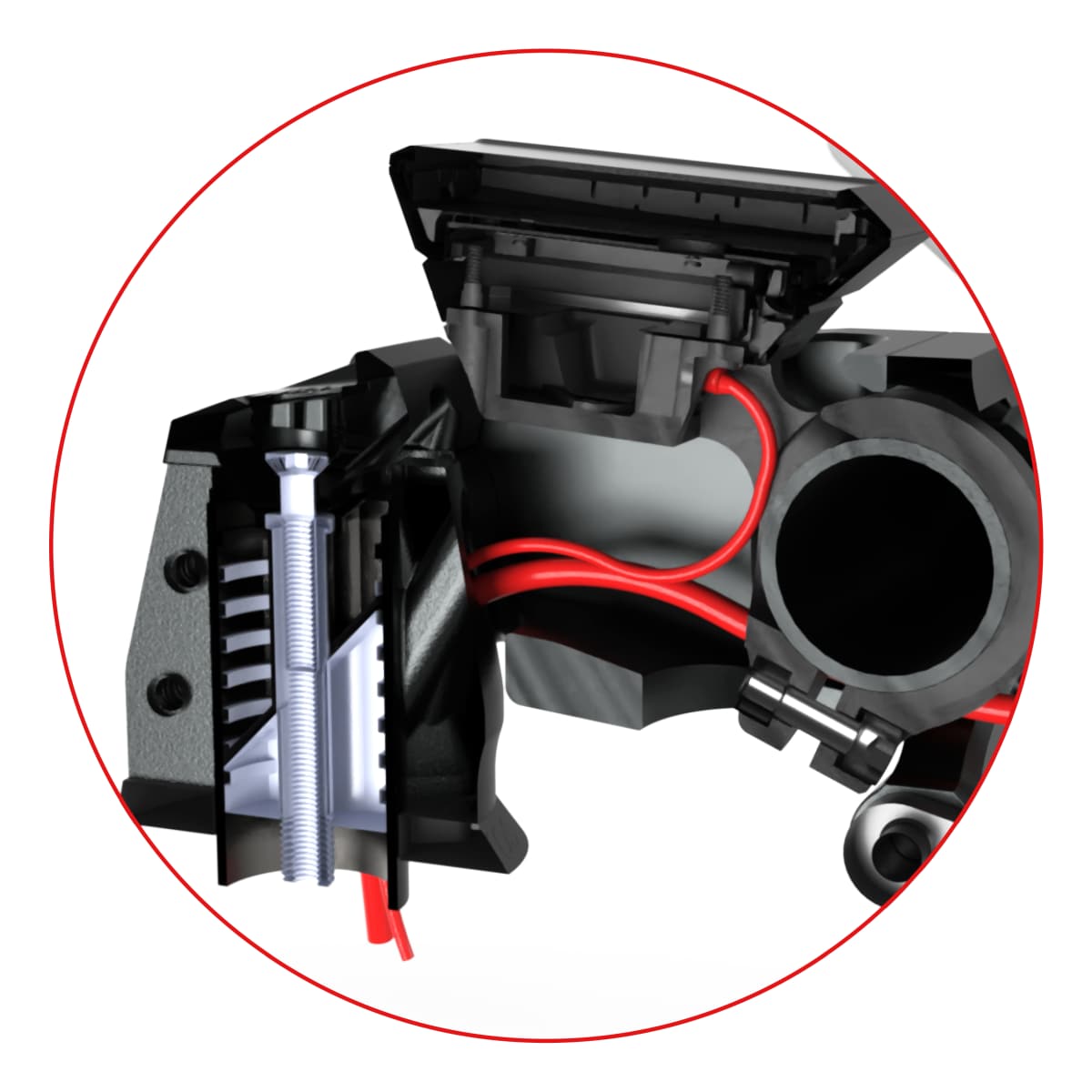

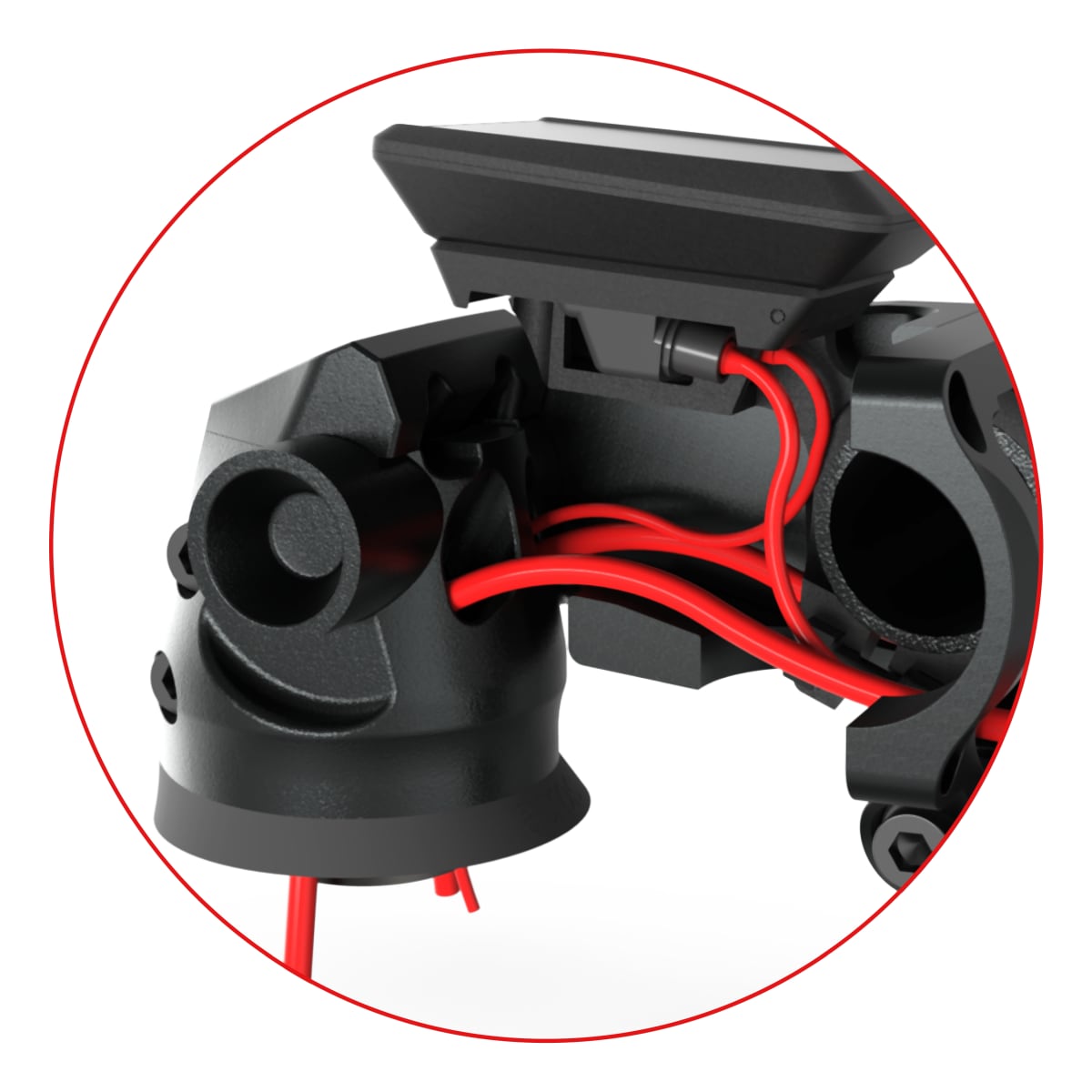

As with the tried-and-tested Integra Performance models, the mount for the Bosch Kiox 300/500 display is already integrated. The display cabling, lines and hoses can be routed through the headset***. The result is a compact, clearly structured look with a clear view of all relevant riding data.

In addition, the Vario version offers an angle adjustment that allows the steering angle to be customised from sporty to comfortable without having to change the stem.

The tilt of the display can also be adjusted accordingly to ensure an easy-to-read position in any riding position.

Details:
• ergotec Safety Level 6*
• Modern Ahead stem with 31.8 mm handlebar clamp and 28.6 mm steerer clamp for e-bikes
• Integrated cable routing through the headset*** and matching display holder for the Bosch Kiox 300/500 display
• Adjustable angle for customising the steering angle
• Variable tilt adjustment of the display

Technical details:
• Material: aluminium 6061 T6
• Fork Steerer Ø: for threadless forks with steerer outer diameter of 28.6 mm (1 1/8”)
• Handlebar clamp: Ø 31.8 mm
• Clamping height on steerer tube: approx. 40mm
• Angle (Rise): adjustable (-10° to +40°)
• Length: 75 mm
• Weight: approx. 552 g

Maximum system weight city/hybrid bike** (rider, bike and luggage):
• Without electric drive: max. 180 kg
• E-bike up to 25 km/h: max. 180 kg
• E-bike up to 45 km/h: max. 160 kg

In the box:
• 1 ergotec Integra Performance Vario stem


* Note:
The product classification of the ergotec Safety Level complies with the DIN EN ISO 4210 standard for bikes and DIN EN 15194 for e-bikes.

** For other types of bicycles other permissible total weights may apply. You can find these when clicking the button below or in the assembly and safety instructions included with the stem.

***A compatible ACROS ICR (Integrated Cable Routing) headset and a suitable Ahead expander are required for internal cable routing. Internal cable routing is not possible with a classic impact claw. Further information on installation can be found in the operating instructions.

ATTENTION:
Due to safety concerns, the manufacturer does NOT approve the use of the stem with carbon steerer tubes.

Manufacturer: Wilhelm Humpert GmbH & Co. KG, Erlenstrasse 25, 58739 Wickede/Ruhr, Germany, www.ergotec.de
