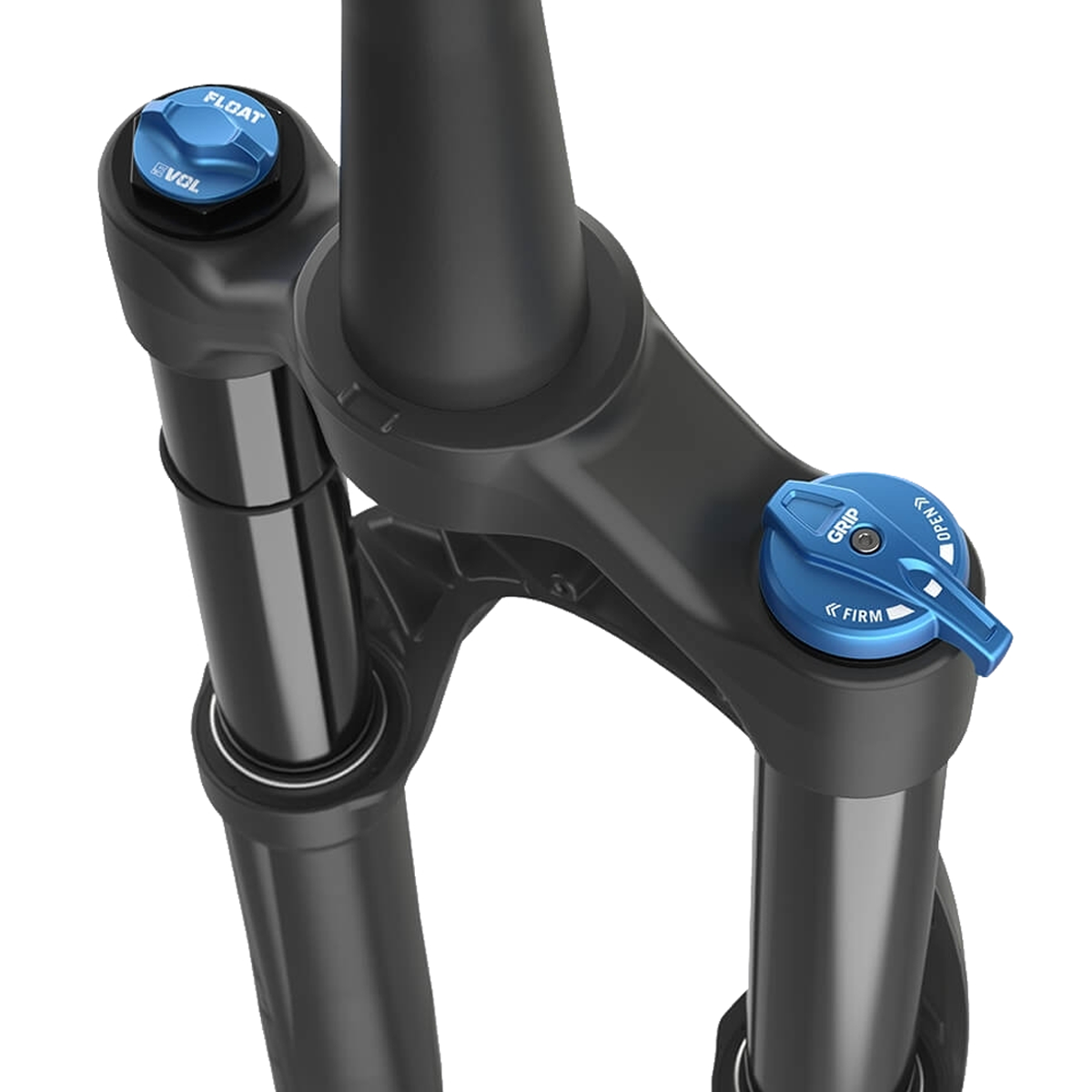

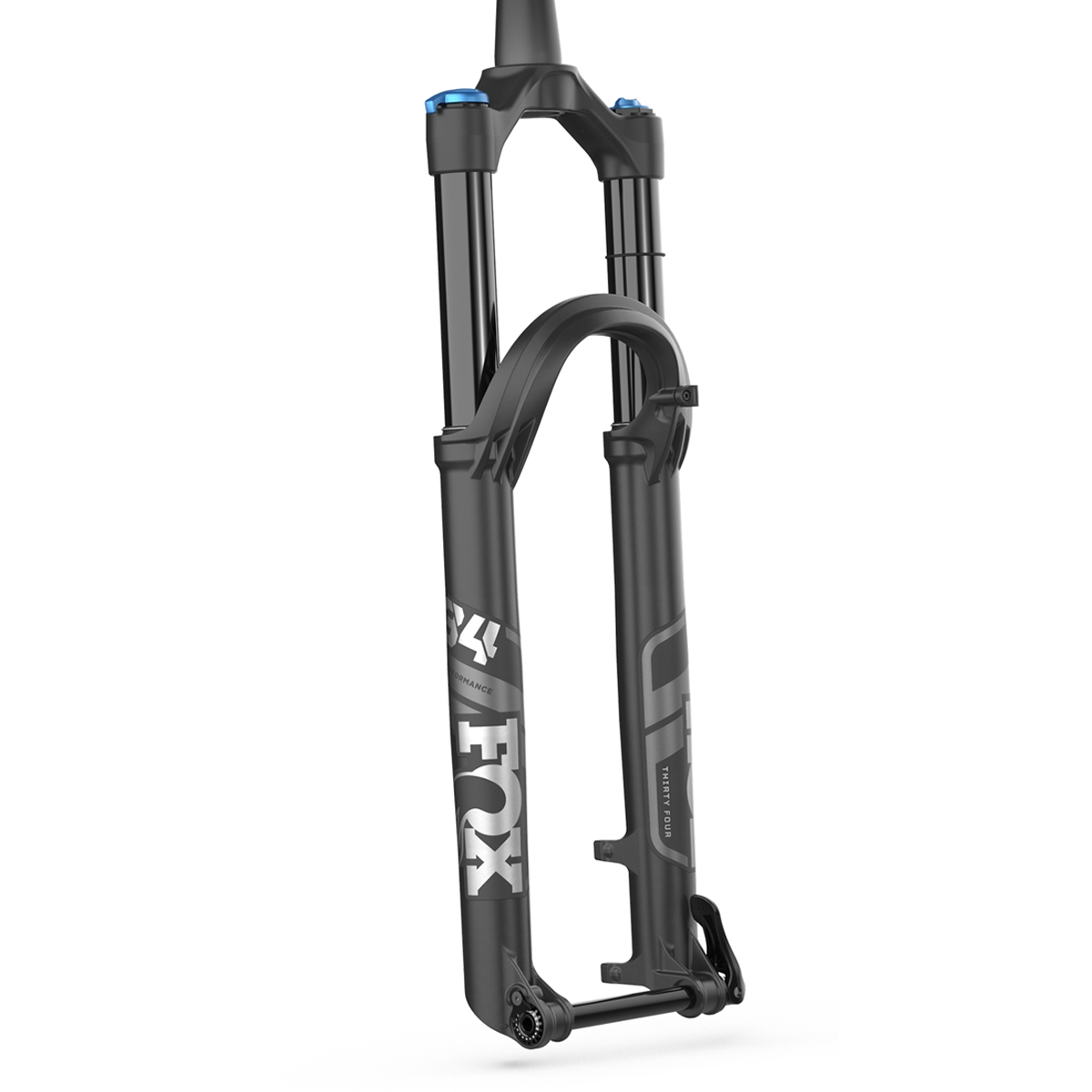

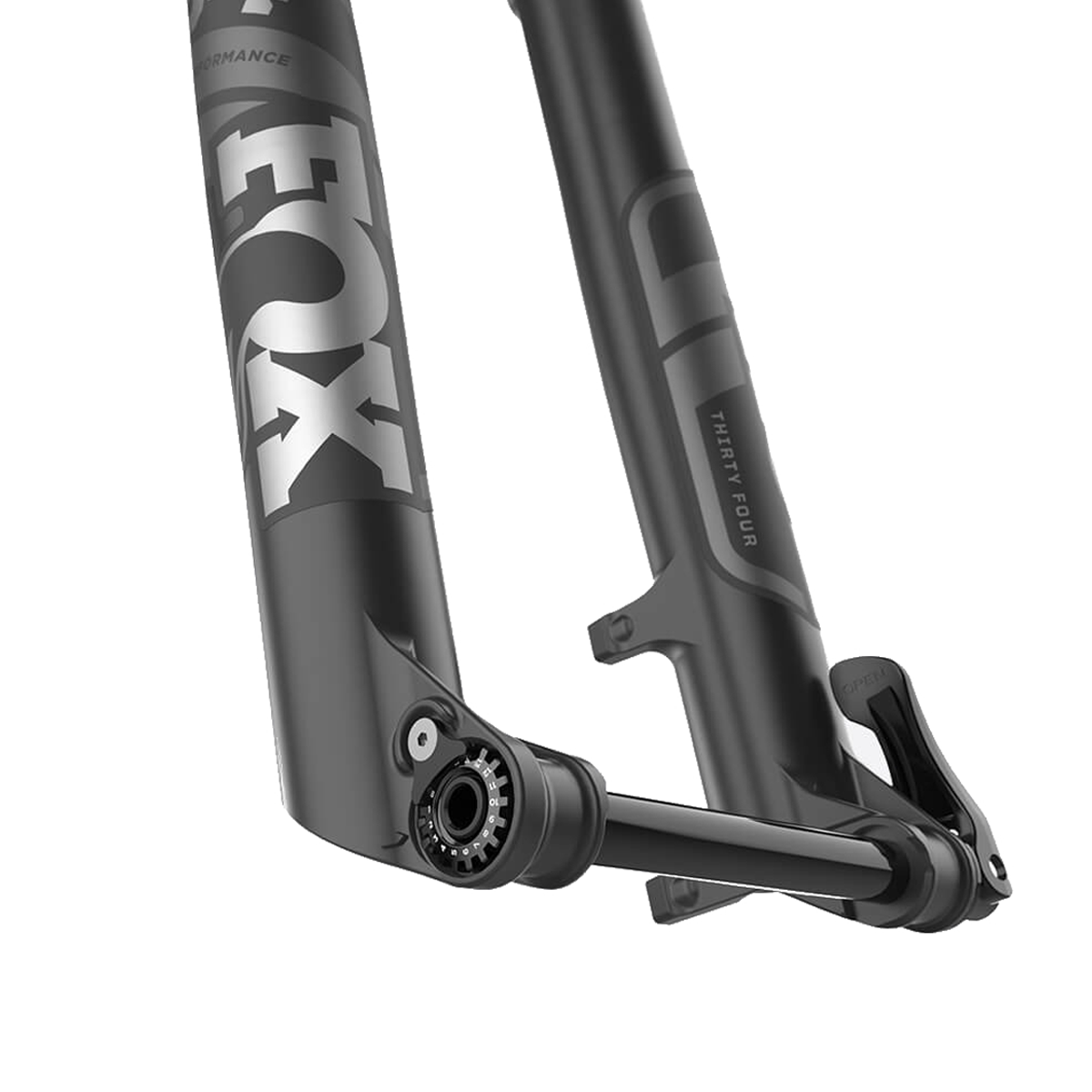

Fox 34 Performance 2022 Float GRIP BOOST 140 mm MTB Suspension Fork 29”
599,95 € Poprzednia cena 1 069,00 €
Cena z VAT dodaj 2,95 € (dla dostawy do Polska)
Kod produktu: 231338501
Kolor schwarz matt
Rozmiar
The 34 is a true all-rounder among FOX’s consistently high-quality range. And the FOX 34 Performance with Grip 3-Pos damping cartridge and sensitive Float EVOL air chamber can once again cross the borders between cross-country, trail and all-mountain terrains.
The high-quality mountain bike fork impresses with its low weight, sensitive response, linear spring characteristics with good counter-pressure in the mid-travel range and particularly easy adjustability. Being limited to 3 perfectly fine-tuned positions, the compression can be easily changed and the rider only has to concentrate on adjusting the rebound and air pressure. This way, even hobby pilots are not overwhelmed with too many adjustment options.
Plus, the progression of the spring characteristic curve of the FOX 34 Performance can be adapted to your own needs with volume spacers. With this equipment you will soon become a nimble trail hunter without the need for lengthy adjustment rides.
Details:
• Performance model
• GRIP 3Pos damping cartridge
• Updated fork casting for optimised stiffness with low weight
• Jutting, rounded lower leg arch to provide more space between arch and head tube
• Can be ridden with 29" tyres with a width of up to 2.6"
• Lower Leg Channels: air or oil ducts to reduce the internal pressure and to improve
the lubrication of the upper bushings and foam rings
• Float EVOL air spring (spring rate can be adjusted with volume spacers)
• Enlarged negative chamber for more counter-hold in the mid travel range
• Brake disc compatibility up to max. Ø 230 mm
Technical details:
• Intended use: Cross-Country, Trail, All-Mountain
• Material: aluminium (fork crown/upper tubes), magnesium (lower tubes)
• Coating (upper tubes): anodised (black)
• Wheel size: 29"
• Steerer: tapered 1 1/8" - 1.5" (aluminium, threadless, approx. 244 mm)
• Travel: 140 mm
• Upper tube Ø: 34 mm
• Suspension: Float EVOL
• Damping technology: GRIP 3Pos (Open, Medium, Firm)
• Adjustments: air pressure, external rebound, external low-speed compression
(3 positions)
• Remote: no
• Disc brake mount: PostMount 7" (180 mm Direct Mount)
• Max. brake disc Ø: 230 mm
• Fork length: 554 mm
• Offset: 44 mm
• Front hub spacing: 15 x 110 mm (Boost)
• Weight: approx. 1560 g
In the box:
• FOX 34 Performance GRIP suspension fork incl. manual
• 1 QR thru axle
• 1 (brake) hose guide
• 1 Ahead star nut
• 3 volume spacers
Attention:
Maximum tyre size 29“ x 2.6" (when using tyres larger than 2.4”, you should check the tyre clearance with the fork fully compressed. There should be a distance of at least 6 mm to the fork crown.)
- Manufacturer`s ref.:
- 910-21-000
- GTIN:
- 821973418995
